Installing a thermostat is a relatively straightforward DIY project that can improve the comfort and energy efficiency of your home’s heating and cooling system. Whether you’re upgrading to a smart thermostat or replacing an old one, this step-by-step guide will walk you through the process.
Step 1: Gather Your Tools and Materials
Before you begin, make sure you have the following tools and materials on hand:
- New thermostat
- Screwdriver (usually a Phillips or flathead)
- Wire labels (optional, but helpful)
- Drill and wall anchors (if required for your thermostat)
Step 2: Turn Off the Power
Safety first! Shut off the power to your heating and cooling system at the circuit breaker or fuse box. This will prevent any electrical accidents while working with the wires.
Step 3: Remove the Old Thermostat
If you’re replacing an existing thermostat, carefully remove it from the wall. Start by removing the cover, typically by gently prying it off. You’ll likely find screws holding the thermostat to the wall plate. Unscrew and detach the thermostat, exposing the wires.
Step 4: Label and Disconnect Wires
To make installation easier, label each wire according to its terminal on the old thermostat. Common labels include “R” for power, “G” for the fan, “Y” for cooling, “W” for heating, and “C” for the common wire. If your wires aren’t color-coded, use colored labels or masking tape.
Once labeled, gently disconnect the wires from the old thermostat terminals. Be cautious not to let the wires slip back into the wall.
Step 5: Remove the Old Wall Plate
If your old thermostat was mounted on a wall plate, remove the plate as well. You’ll likely need a screwdriver for this step.
Step 6: Install the New Wall Plate
If your new thermostat requires a wall plate (not all do), attach it to the wall using wall anchors and screws. Ensure it’s level and securely mounted.
Step 7: Connect the Wires to the New Thermostat
Refer to the manufacturer’s instructions for your new thermostat to identify the correct terminal for each labeled wire. Typically, you’ll match them as follows:
- R (power) to R
- G (fan) to G
- Y (cooling) to Y
- W (heating) to W
- C (common) to C (if your system has one)
Follow the manufacturer’s instructions carefully, as some smart thermostats may have additional terminals for specific features.
Step 8: Mount the New Thermostat
Attach the new thermostat to the wall plate by gently aligning it with the mounting pins or screws. Secure it in place according to the manufacturer’s instructions. Make sure it’s level.
Step 9: Restore Power and Test
Turn the power back on at the circuit breaker or fuse box. Your thermostat should power up. Follow the setup instructions provided by the manufacturer. This may involve configuring Wi-Fi settings, setting the time and date, and programming your desired temperature settings.
Step 10: Test the Heating and Cooling
After setup, test both the heating and cooling functions to ensure they work correctly. Set the thermostat to a temperature that will trigger the heating and cooling systems to turn on and confirm that the system responds as expected.
Step 11: Program and Use Your New Thermostat

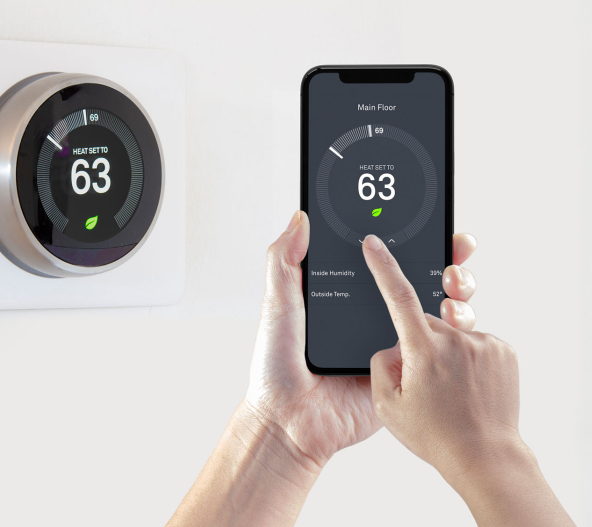

If you have a programmable or smart thermostat, take the time to program your preferred heating and cooling schedules. Many smart thermostats can be controlled remotely via smartphone apps, offering even greater convenience and energy savings.
Step 12: Seal Any Wall Holes
If you needed to drill new holes for your thermostat, use caulk or putty to seal any gaps around the wall plate, ensuring an airtight seal.
Congratulations! You’ve successfully installed a new thermostat. A properly functioning thermostat can help you save on energy costs and provide precise control over your home’s temperature, contributing to both comfort and efficiency. Call Swift Air for more information.
